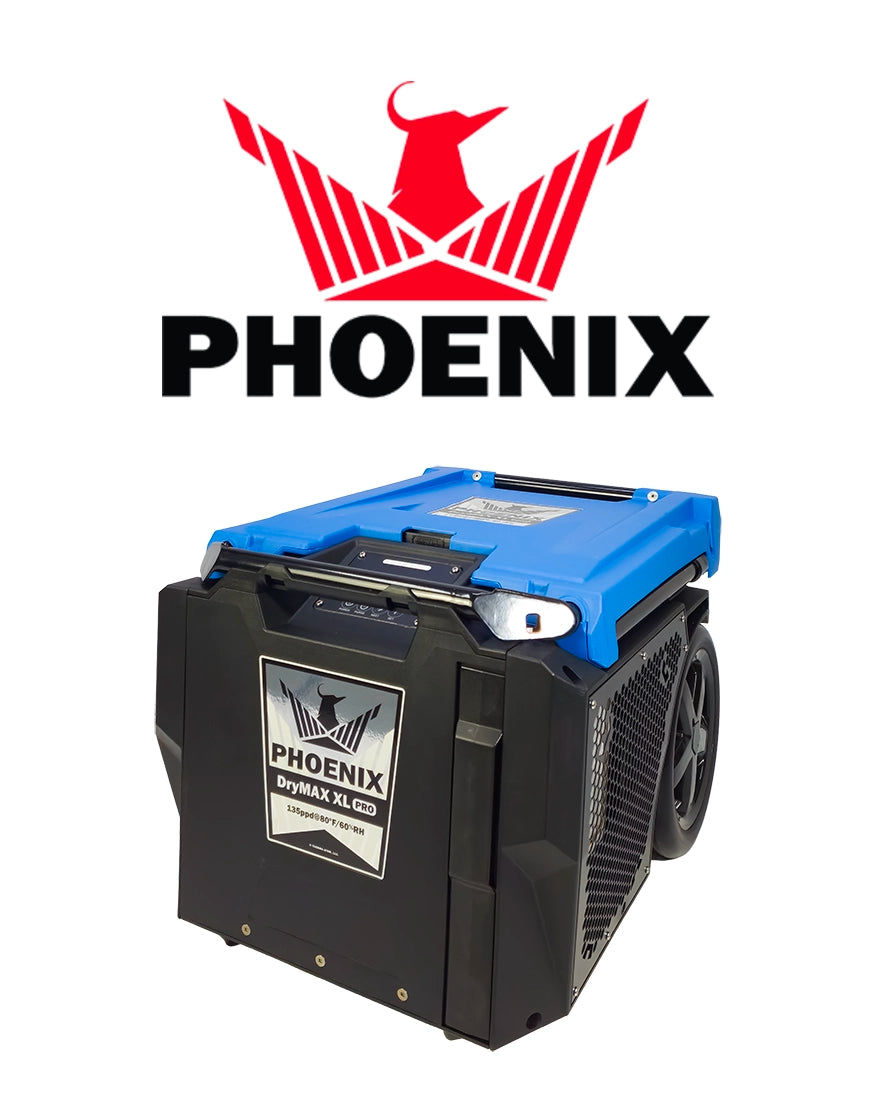

Phoenix DryMAX XL PRO LGR Dehumidifier (Blue)

The Phoenix DryMAX XL Pro combines high-capacity water removal, excellent portability, and advanced drying technology in a rugged professional LGR dehumidifier. It removes up to 135 pints of water per day under AHAM conditions while drawing only 6.7 amps, providing powerful and efficient performance for water damage restoration and structural drying applications.

A two-position telescoping handle and large 12-inch wheels make the DryMAX XL Pro exceptionally easy to move across flat surfaces or up and down stairs. The extended handle also allows the unit to function as a dolly for transporting compatible Phoenix AirMAX, AirMAX BLE, and Focus II air movers. Built-in Bluetooth, onboard data logging, and DryLINK connectivity provide the information restoration professionals need to monitor equipment performance and document drying conditions. The Phoenix DryMAX XL Pro is stocked by Butler Supply Co. in blue.

Features

• Removes up to 135 pints of water per day under AHAM conditions
• Patented five-coil low-grain refrigerant system delivers powerful moisture removal
• Draws only 6.7 amps on a standard 110-120-volt circuit
• Two-position telescoping handle extends to 42 inches for flat surfaces or 50 inches for easier stair transport
• Large 12-inch wheels provide smooth movement across stairs and uneven surfaces

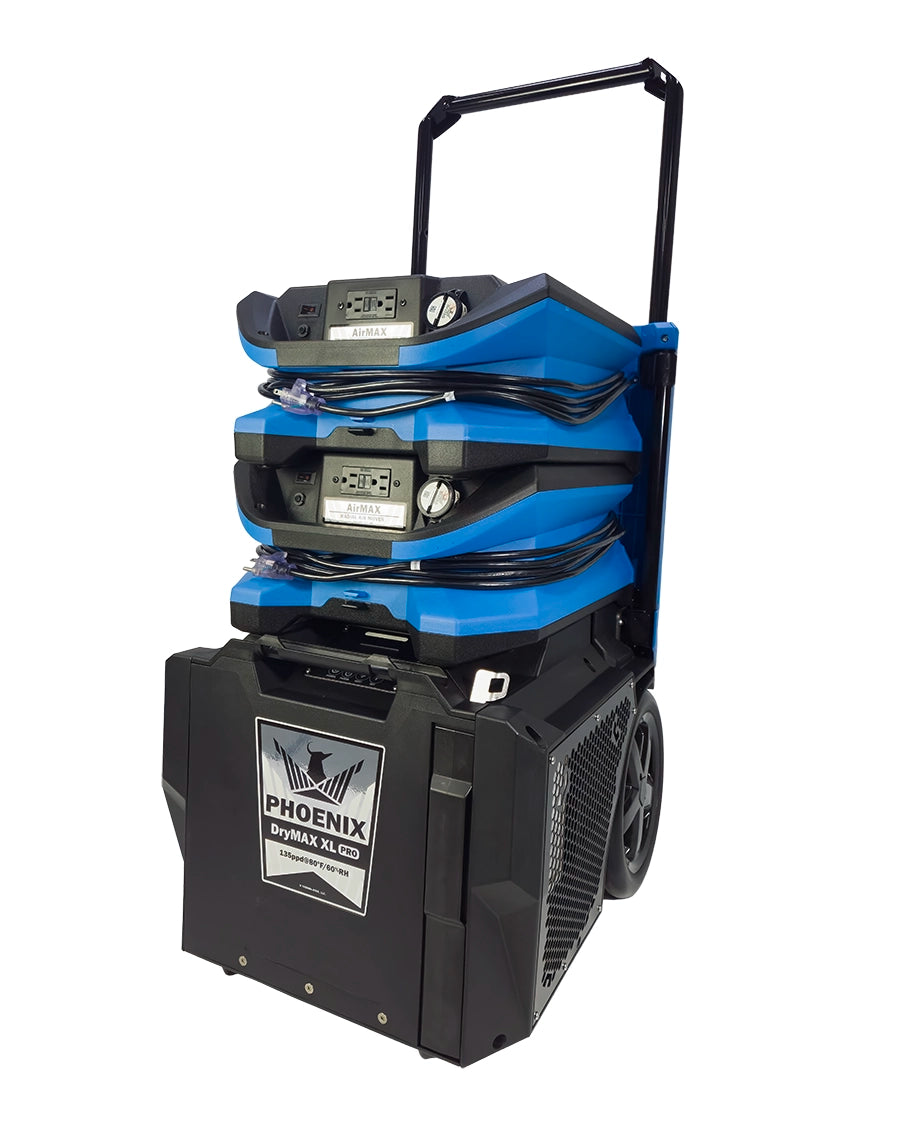

• Extended handle functions as a dolly for compatible Phoenix air movers
• AirMAX, AirMAX BLE, and Focus II air movers securely interlock with the top of the unit for transport
• Stacking and nesting design saves space during storage and transportation
• Up to three DryMAX XL Pro units can be securely stacked
• Built-in Bluetooth connects directly with the Phoenix DryLINK app
• Logs inlet and outlet temperature and relative humidity readings up to 96 times per day
• Stores up to 30 days of onboard environmental data
• Adding two AA batteries maintains a connection with DryLINK Asset Manager when the unit is unplugged, eliminating the need for a separate tracking tag
• Onboard USB port can power an optional DryPHONE for remote monitoring
• Lockable cover provides a secure location for an optional DryPHONE
• Digital display shows inlet and outlet conditions, grain depression, job hours, and total operating hours
• Status indicator light provides at-a-glance operating information
• Adjustable humidistat mode allows automatic humidity control
• Quiet Mode reduces airflow to 225 CFM when lower sound and airflow are preferred
• Internal condensate pump automatically removes collected water
• Compatible with 14-inch lay-flat ducting for directing dry air into targeted areas
• MERV-10 filtration helps protect the refrigeration system from airborne debris
• High-impact structural foam housing protects the unit on demanding restoration jobs
• Service-friendly construction simplifies routine maintenance and repairs

Specifications

• Color: Blue
• Water Removal: 135 pints per day at AHAM conditions of 80°F and 60% RH
• Power: 110-120 VAC
• Current Draw: 6.7 amps
• Airflow: 300 CFM
• Quiet Mode Airflow: 225 CFM
• Operating Range: 33°F to 105°F
• Filter: 12 in. × 14 in. × 1 in. MERV-10 pleated media filter
• Ducting Connection: One 14 in. lay-flat outlet
• Power Cord: 25 ft.
• Drain Hose: 33 ft.
• Condensate Pump Lift: Up to 20 ft.
• Refrigerant: R454B
• Unit Dimensions: 20 in. W × 18 in. H × 25.4 in. D
• Unit Weight: 85 lbs.
• Shipping Dimensions: 23 in. W × 20 in. H × 29 in. D
• Shipping Weight: 90 lbs.
• Xactimate Code: WTRDHM>>
